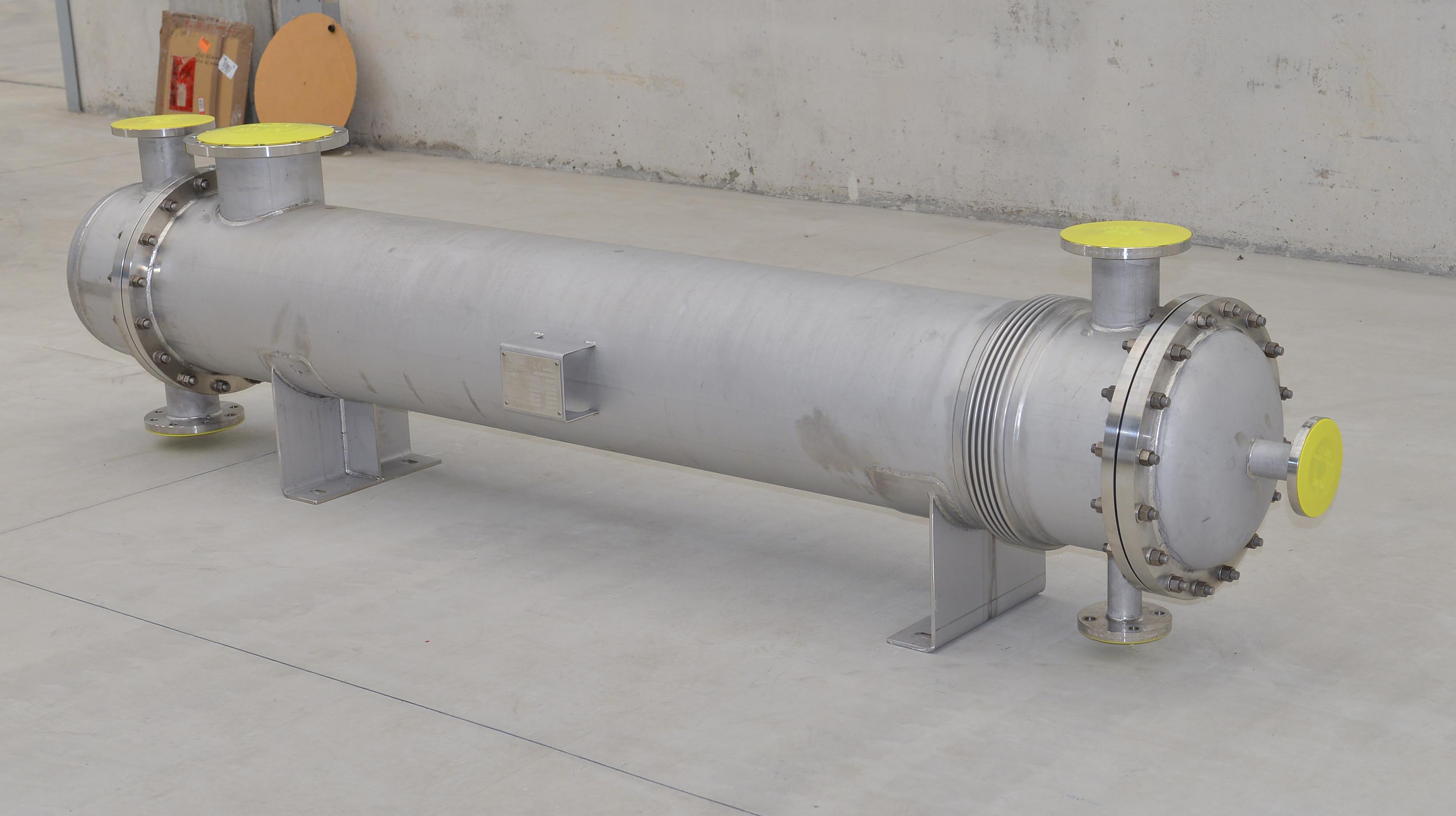

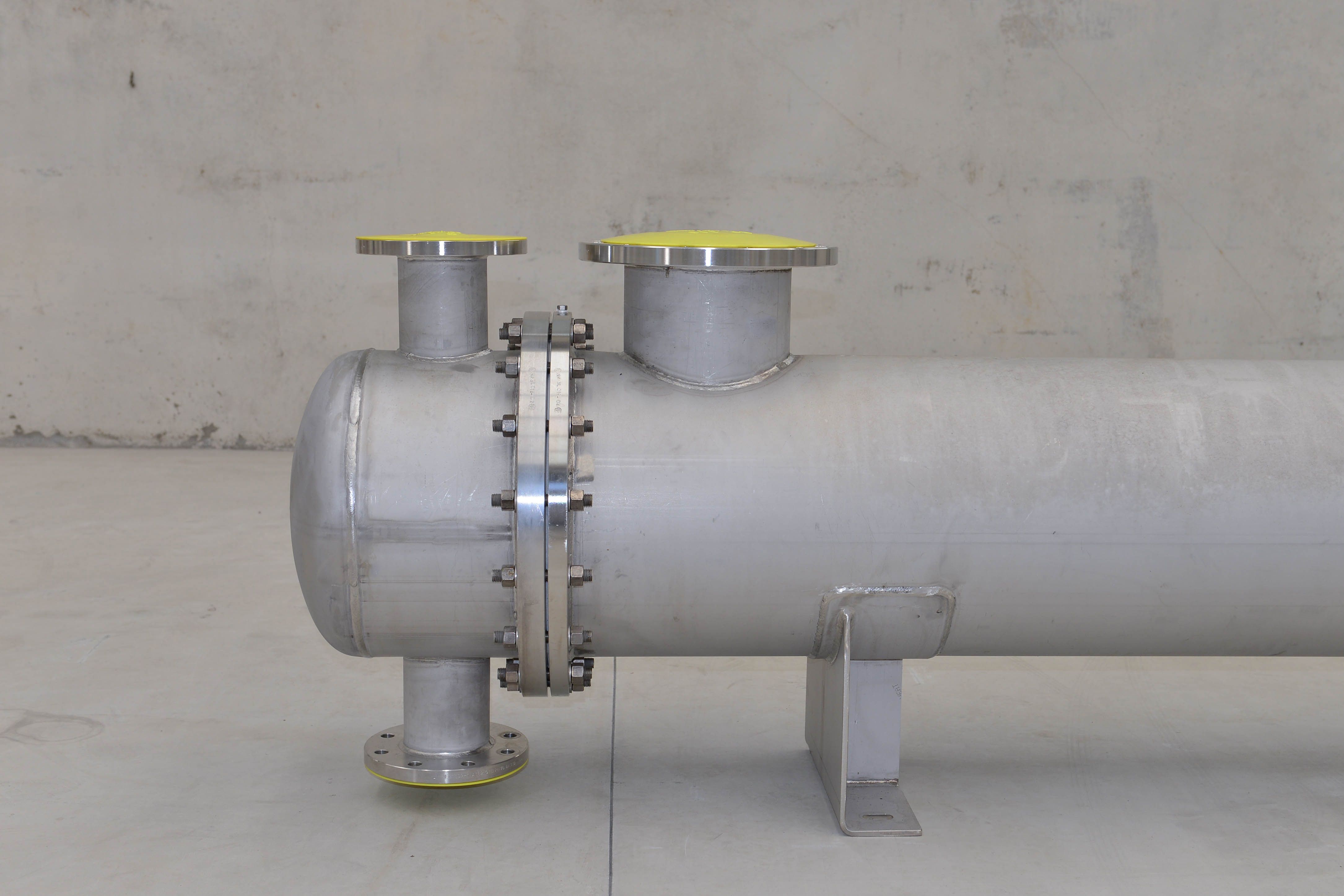

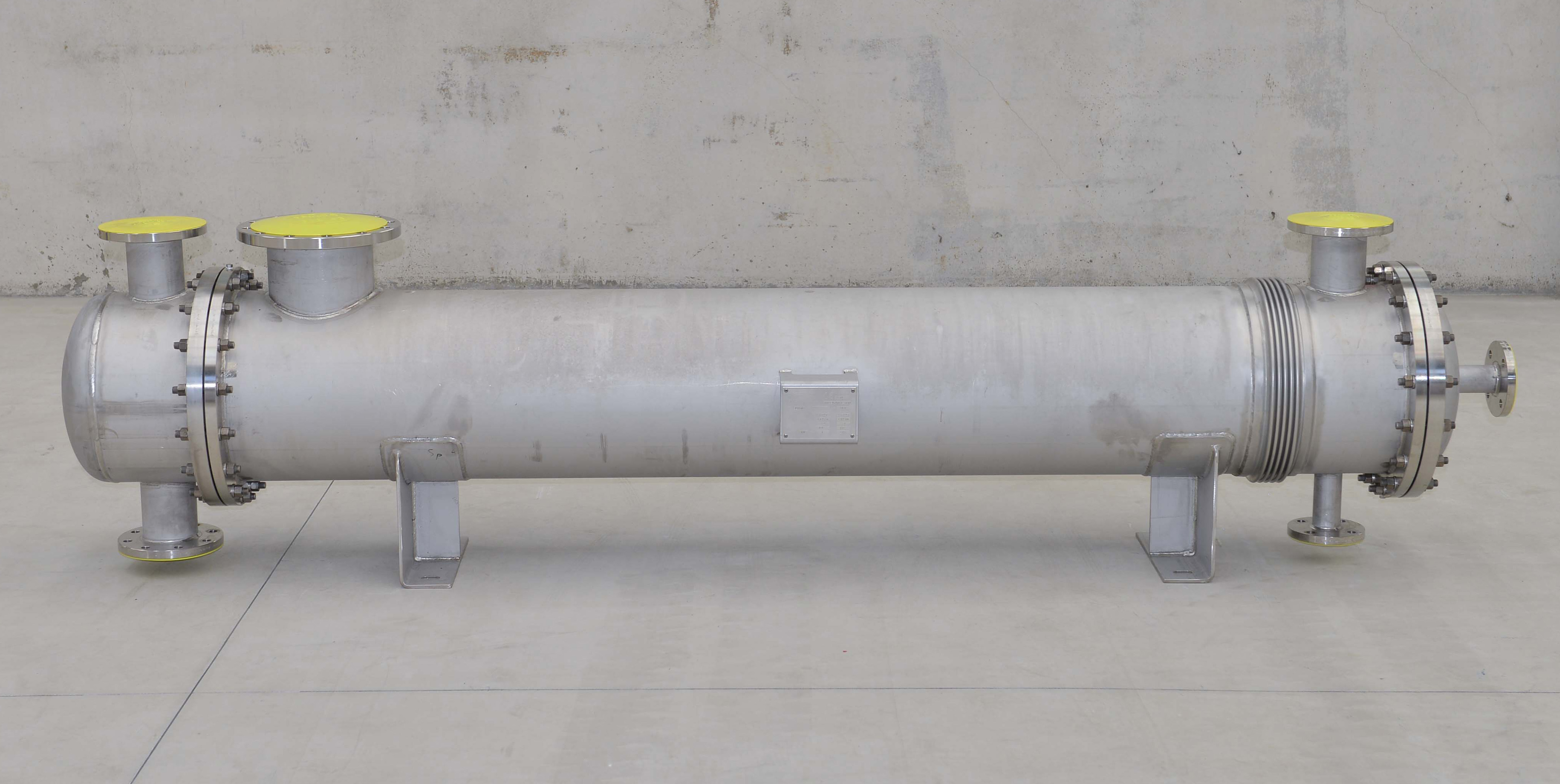

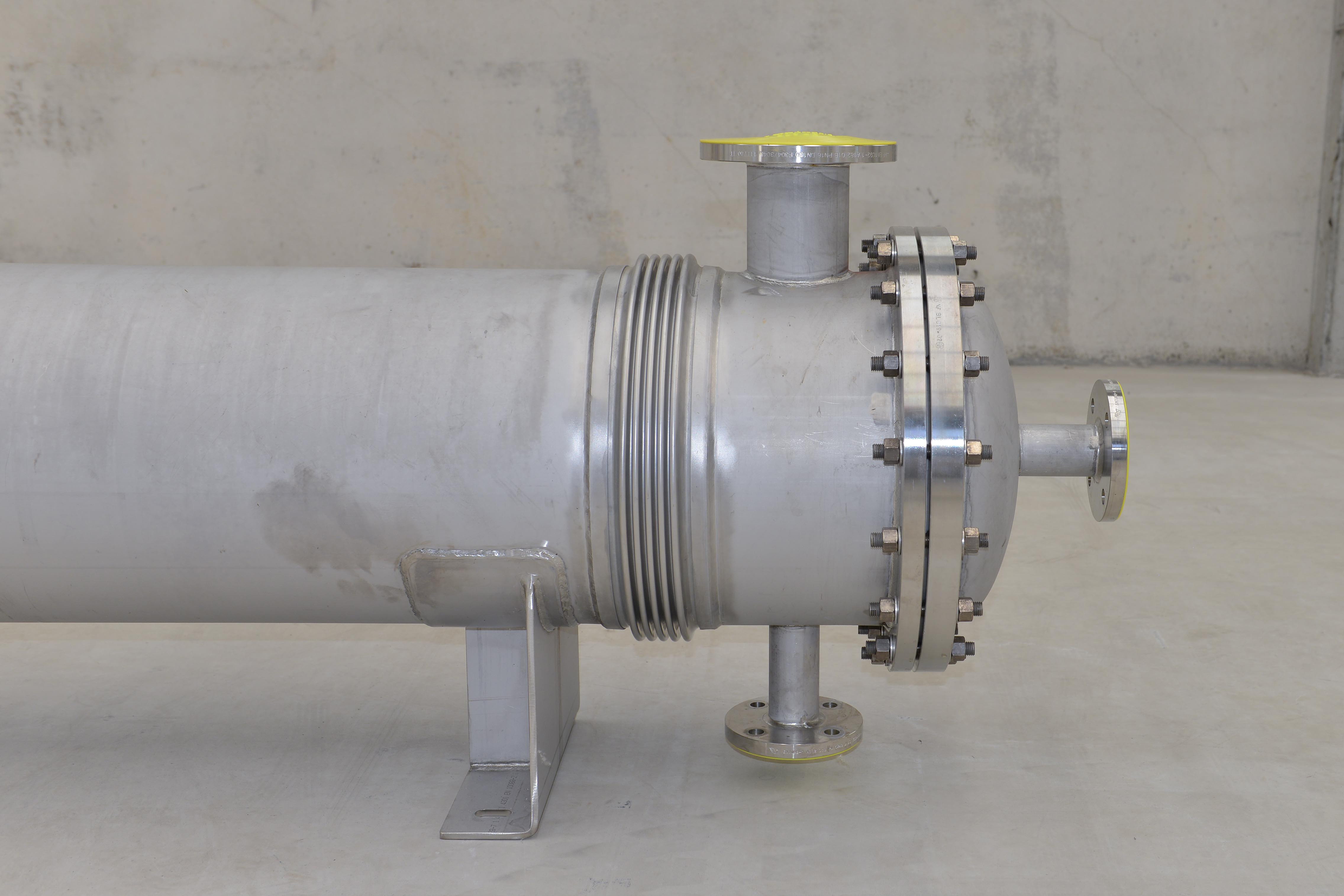

30 m2 SS316L horizontal heat exchanger / condenser
30 m2 SS316L horizontal heat exchanger / condenser
Contact us for price
Location:Guardamiglio, Italy
Description

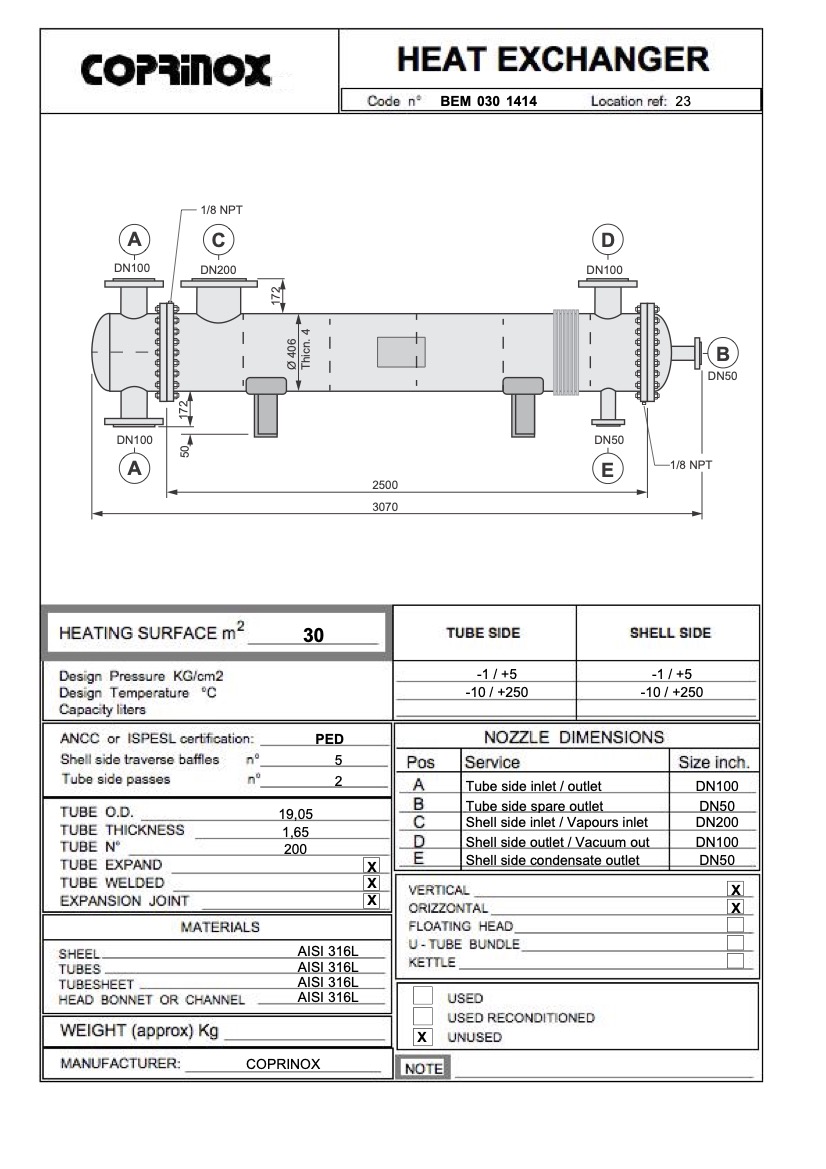

Heat exchanger / Condenser bundle of 30 square meters, shell diameter 400 mm, tubes diameter 19.05 mm, manufacturer COPRINOX, passage on the pipe side in AISI 316L, passage on the mantle side in AISI 316L. Expansion join. Design pressure on the pipe side -1 / +5 Bar, design temperature tube side -10 / +250 ° C, design pressure shell side -1 / +5 Bar, design temperature shell side -10 / +250 ° C, PED certified.
Specifications
| Manufacturer | COPRINOX |
| Model | BEM30 BEM30EXP |
| Condition | New |
| Stock Number | BEM 030 1414 |
| Surface | 30 square meters |
| Manufacturer | COPRINOX |
| Pressure side 1 | -1 / +5 bar |
| Side 1 temperature | -10 / +250 ° C |
| Pressure side 2 | -1 / +5 bar |
| Side 2 temperature | -10 / +250 ° C |
| Certification | PED |
| Material side 1 | AISI 316L |
| Material side 2 | AISI 316L |
