F.B.M. heat exchanger from 5 square meters
F.B.M. heat exchanger from 5 square meters
Contact us for price
Location:Guardamiglio, Italy
Description

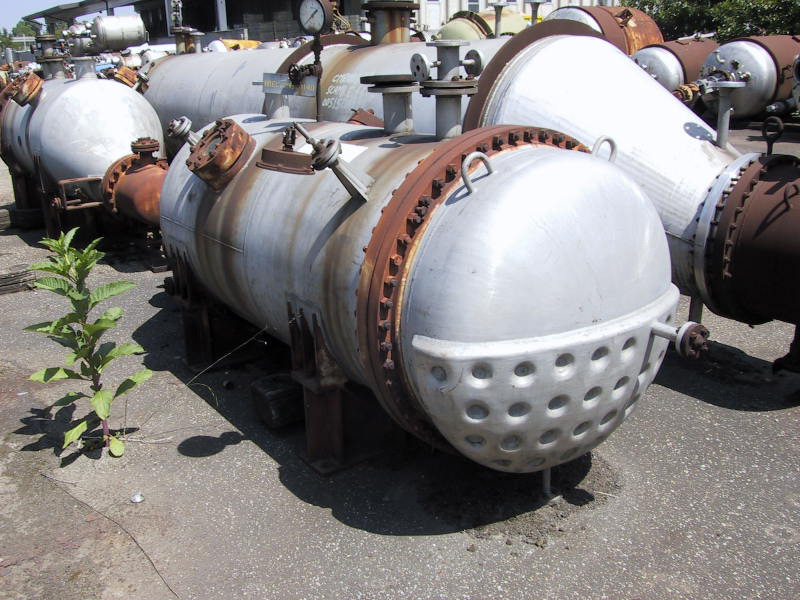

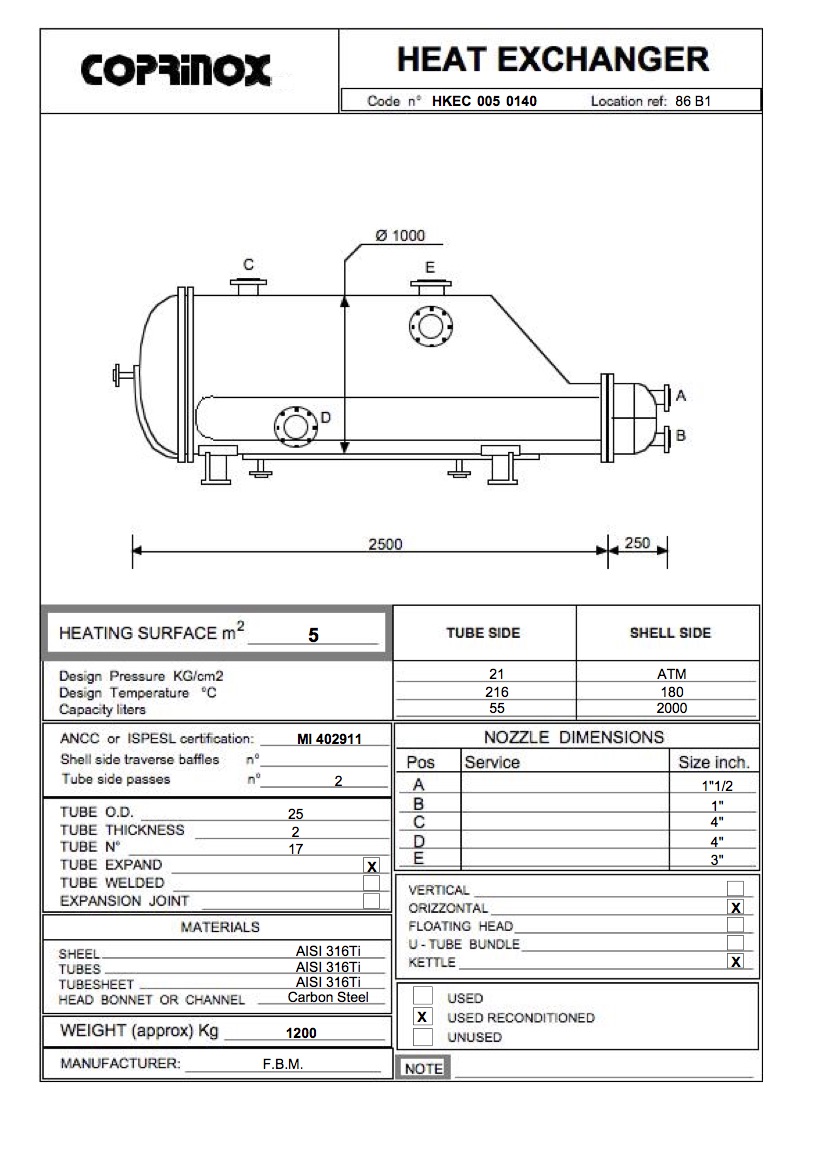

5 square meter tube bundle heat exchanger, 1000 mm jacket diameter, 25 mm tube diameter, FBM manufacturer, Carbon Steel tube side passage, AISI 316Ti shell side passage, design pressure on the tube side 21 Bar, design temperature on the side pipes 216 ° C, design pressure on the casing side ATM Bar, design temperature on the casing side 180 ° C, ISPESL MI 402911 testing, weight about 1200 Kg
Specifications
| Condition | Used |
| Stock Number | HKEC 005 0140 |
| Surface | 5 square meters |
| Manufacturer | F.B.M. |
| Pressure side 1 | 21 bar |
| Side 1 temperature | 216 ° C |
| Pressure side 2 | ATM |
| Side 2 temperature | 180 ° C |
| Certification | MI 402911 |
| Material side 1 | AISI 316Ti |
| Material side 2 | Carbon Steel |
| Weight | 1200 Kg |
| country | Italy |
