SIT IMPIANTI heat exchanger of 12.8 square meters

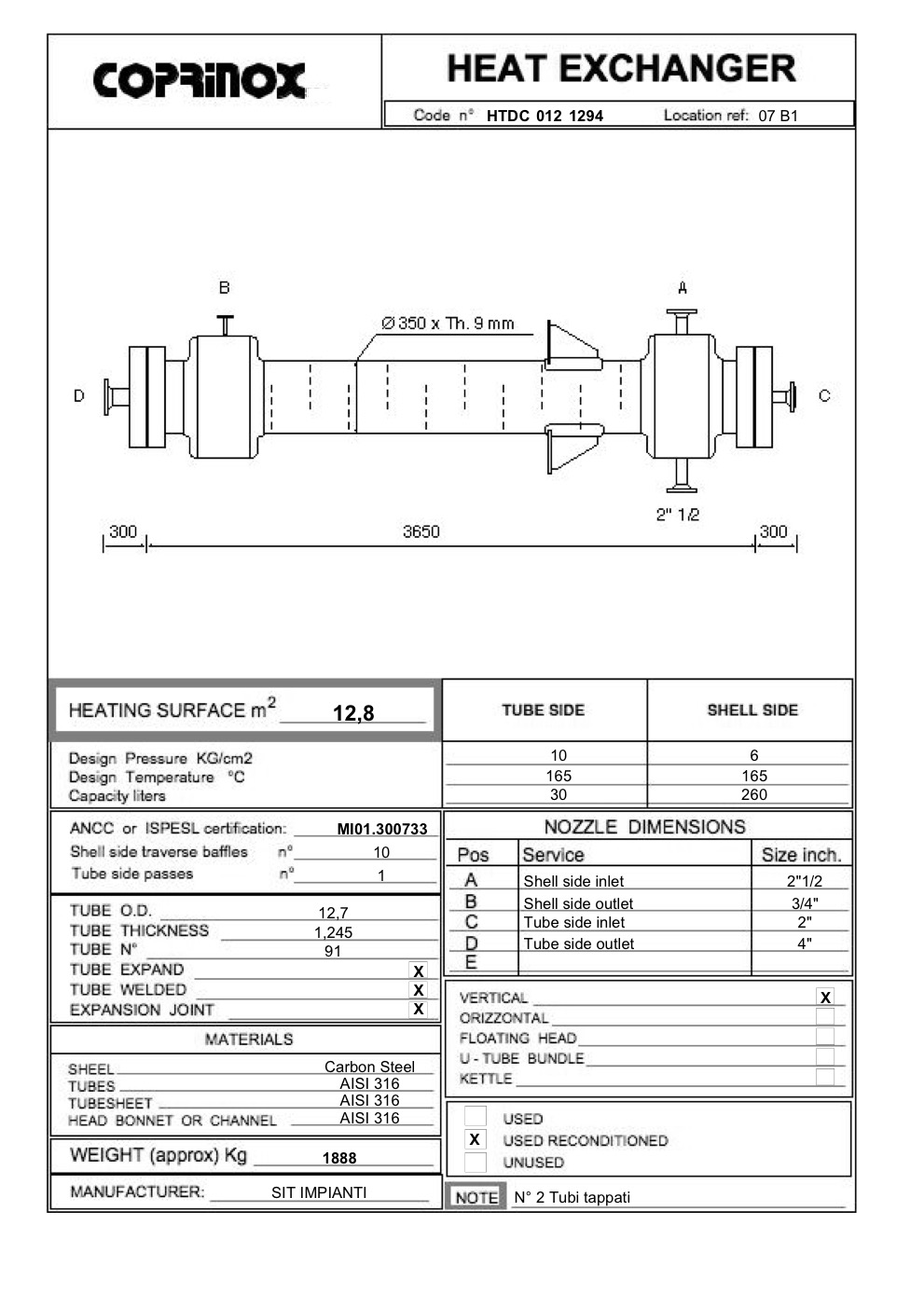

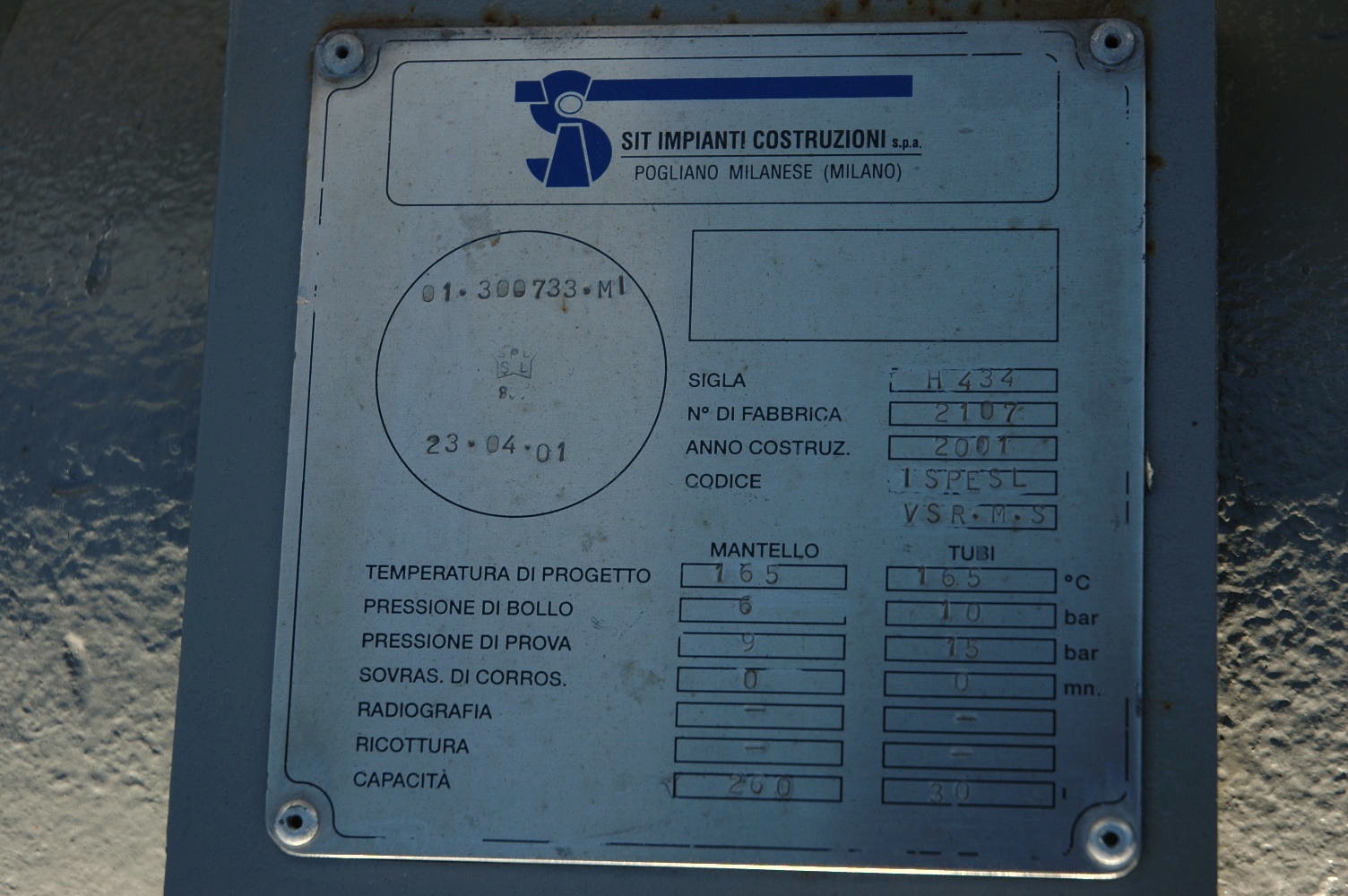

Tube bundle heat exchanger of 12.8 square meters, casing diameter 350 mm, pipe diameter 12.7 mm, manufacturer SIT IMPIANTI, passage on the pipe side in AISI 316, passage on the mantle side in Carbon Steel, design pressure on the pipe side 10 Bar , design temperature tube side 165 ° C, design pressure shell side 6 Bar, design temperature shell side 165 ° C, ISPESL test MI01.300733, weight about 1888 Kg N ° 2 plugged pipes
