24 square meter heat exchanger
No longer available
24 square meter heat exchanger
Location:Guardamiglio, Italy
Description

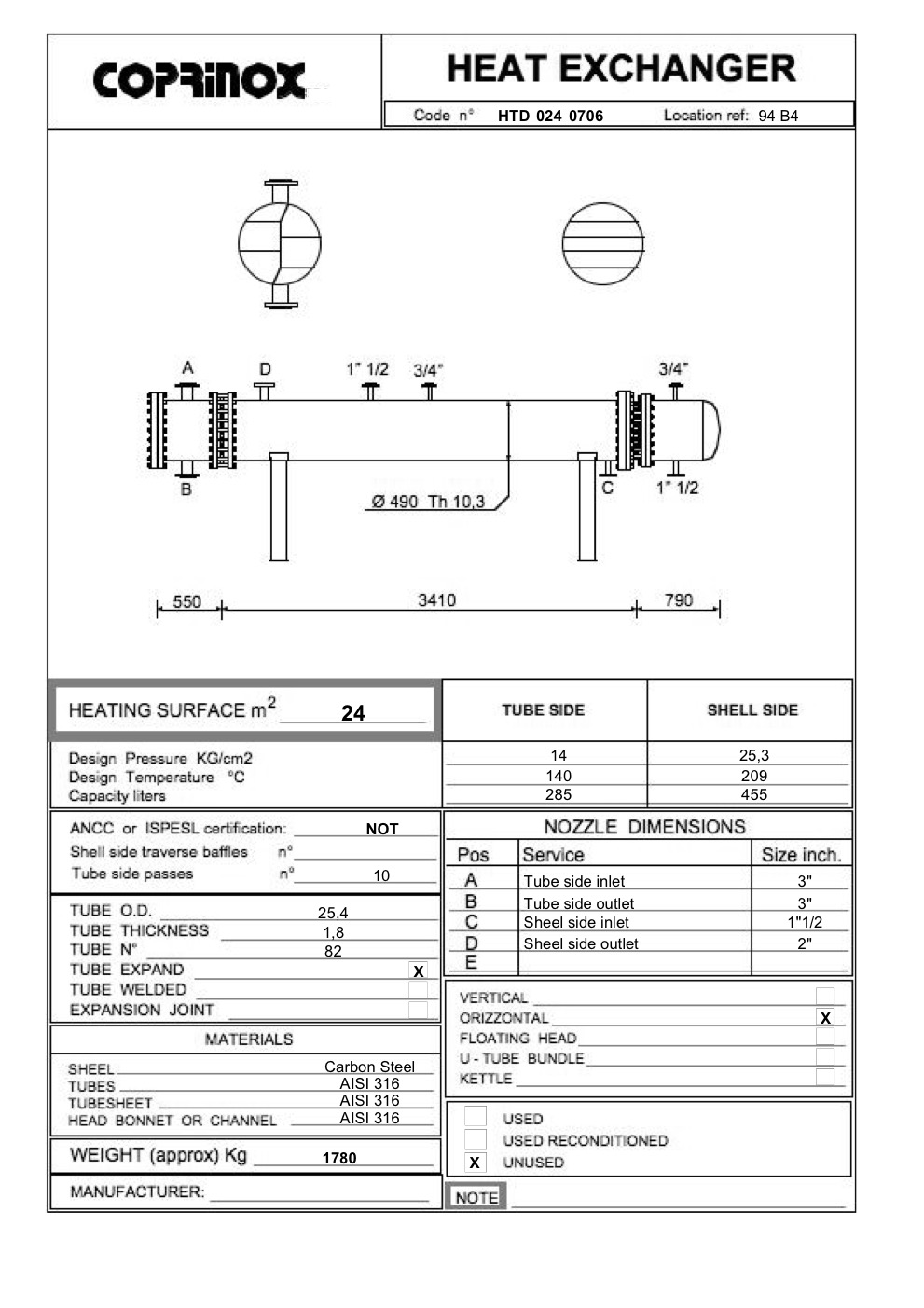

Shell and tube heat exchanger 24 square meters, casing diameter 490 mm, pipes diameter 25.4 mm, passage on the pipes side in AISI 316, passage on the casing side in Carbon Steel, design pressure on the tubes side 14 Bar, design temperatures on the tubes side 140 ° C, shell side design pressure 25.3 Bar, shell side design temperature 209 ° C, weight about 1780 Kg
Specifications
| Condition | Used |
| Stock Number | HTD 024 0706 |
| Surface | 24 square meters |
| Pressure side 1 | 14 bar |
| Side 1 temperature | 140 ° C |
| Pressure side 2 | 25.3 bar |
| Side 2 temperature | 209 ° C |
| Certification | NOT |
| Material side 1 | AISI 316 |
| Material side 2 | AISI 316 |
| Weight | 1780 Kg |
| country | Italy |
