SAICI 10.5 square meter heat exchanger
SAICI 10.5 square meter heat exchanger
Contact us for price
Location:Guardamiglio, Italy
or
Call +39 0377 51209
Description

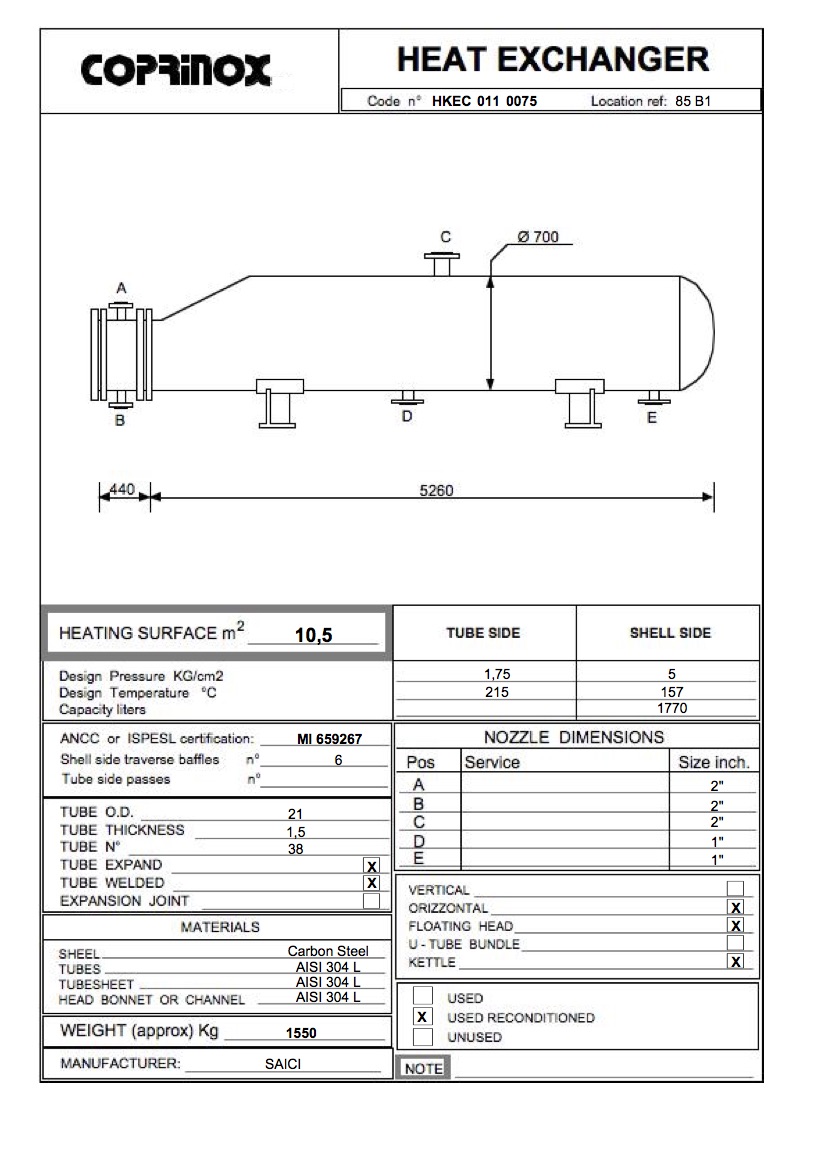

Tube bundle heat exchanger of 10.5 square meters, shell diameter 700 mm, tube diameter 21 mm, manufacturer SAICI, passage on the tube side in AISI 304 L, passage on the shell side in Carbon Steel, design pressure on the tube side 1.75 Bar , design temperature tube side 215 ° C, design pressure shell side 5 Bar, design temperature shell side 157 ° C, ISPESL MI 659267 test, weight about 1550 Kg
Specifications
| Condition | Used |
| Stock Number | HKEC 011 0075 |
| Surface | 10.5 square meters |
| Manufacturer | SAICI |
| Pressure side 1 | 1.75 bar |
| Side 1 temperature | 215 ° C |
| Pressure side 2 | 5 bars |
| Side 2 temperature | 157 ° C |
| Certification | MI 659267 |
| Material side 1 | AISI 304 L |
| Material side 2 | AISI 304 L |
| Weight | 1550 Kg |
| country | Italy |
