134.2 square meter heat exchanger
134.2 square meter heat exchanger
Contact us for price
Location:Guardamiglio, Italy
Description

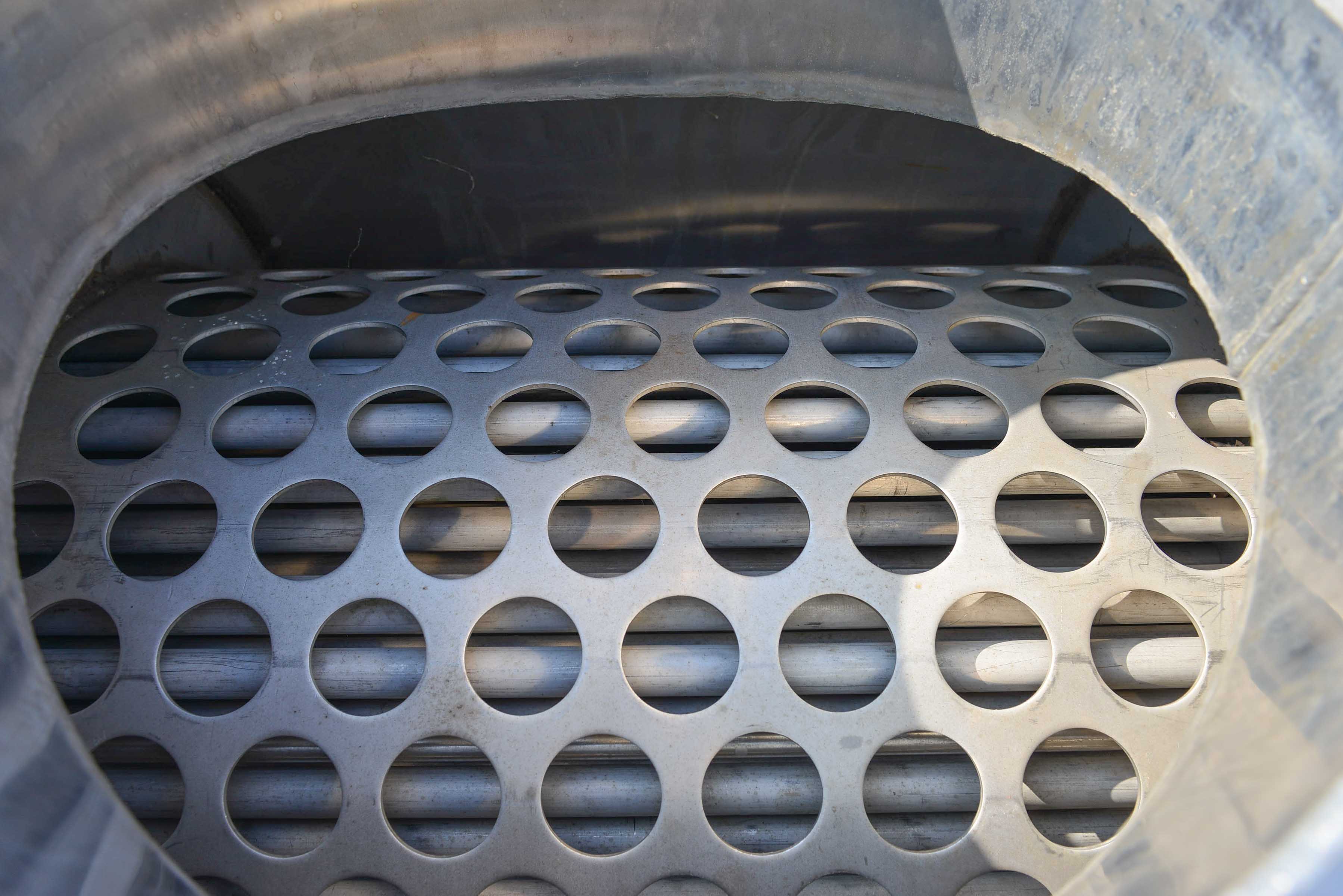

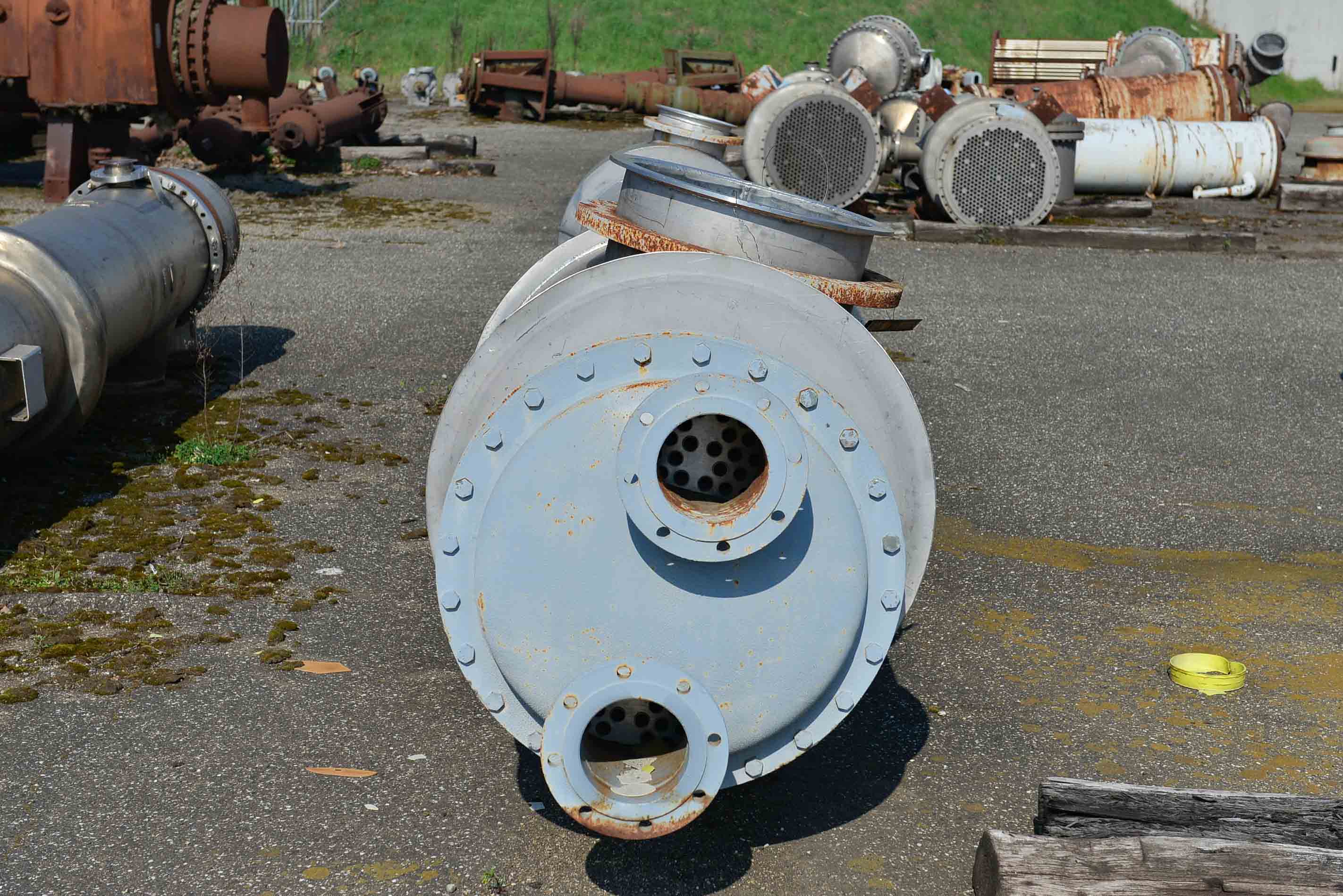

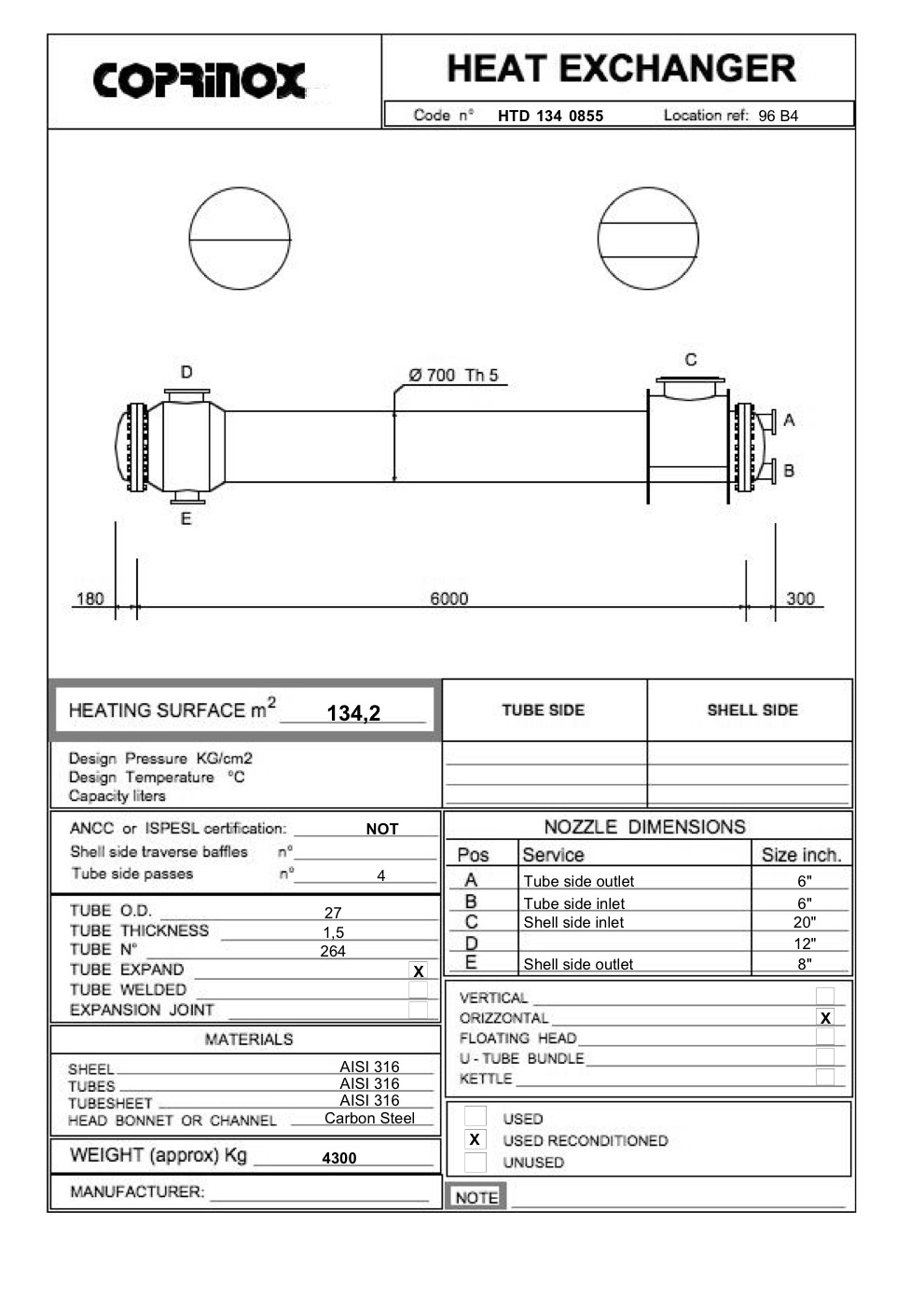

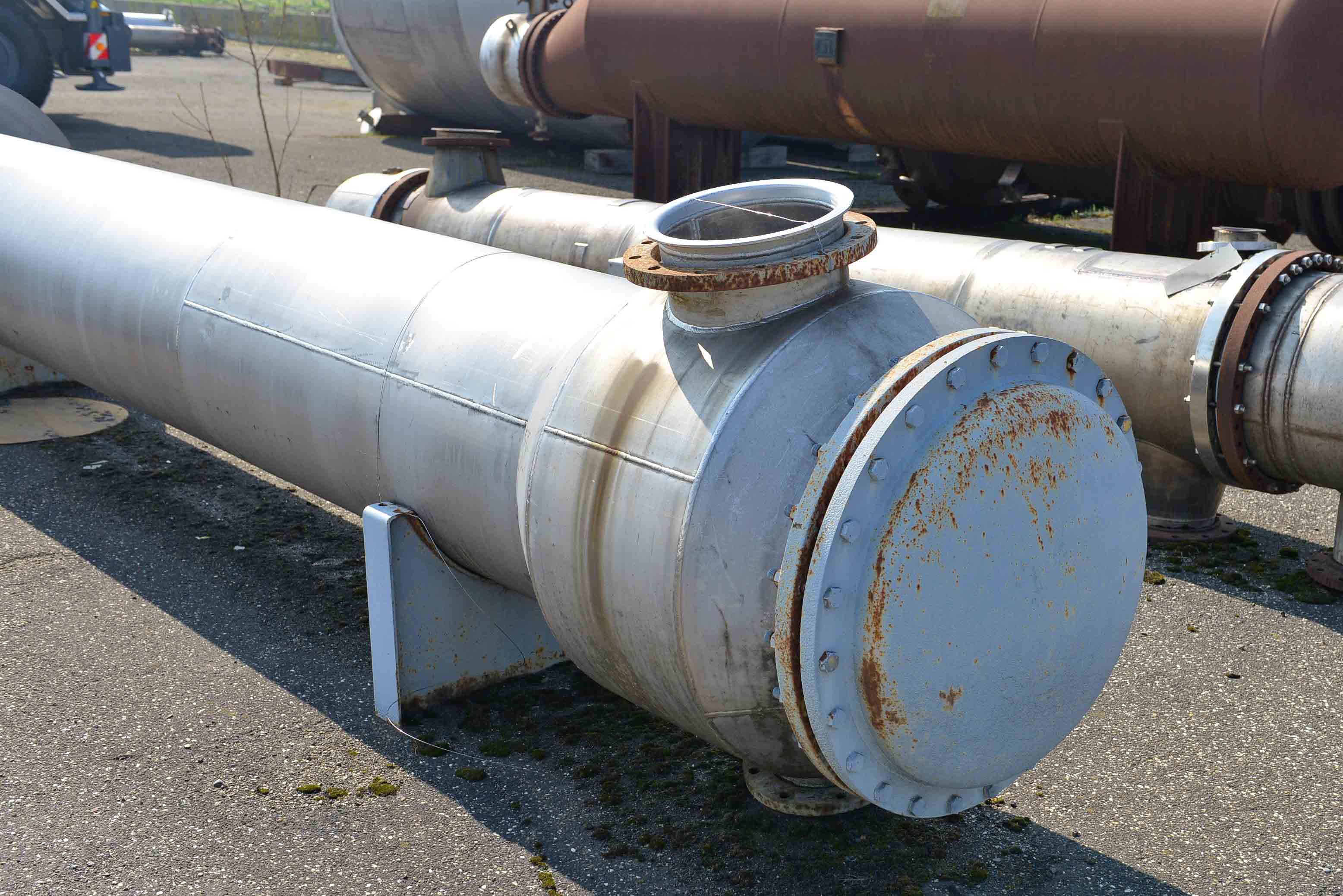

Shell and tube heat exchanger of 134.2 square meters, shell diameter 700 mm, pipe diameter 27 mm, passage on the side of pipes in Carbon Steel, passage on the mantle side in AISI 316, weight about 4300 Kg
Specifications
| Condition | Used |
| Stock Number | HTD 134 0855 |
| Surface | 134.2 square meters |
| Certification | NOT |
| Material side 1 | AISI 316 |
| Material side 2 | Carbon Steel |
| Weight | 4300 Kg |
| country | Italy |
