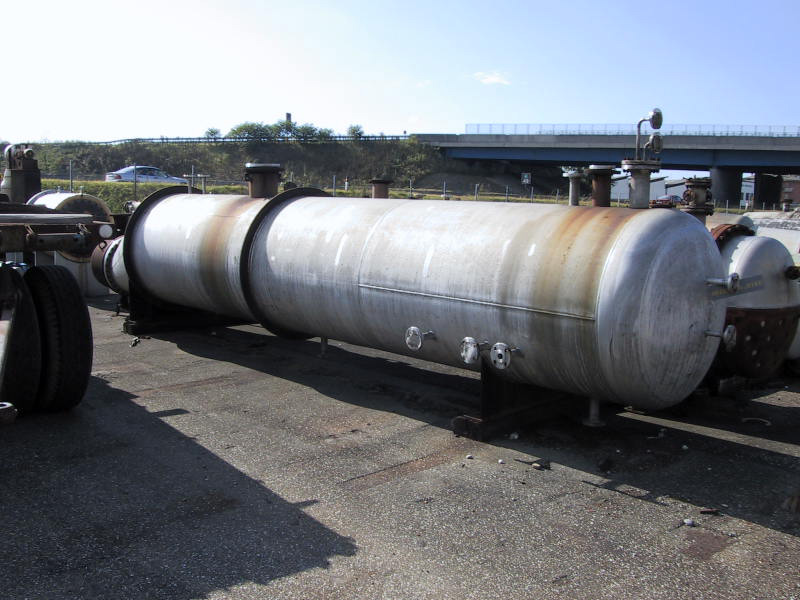

130 square meter VRV heat exchanger
130 square meter VRV heat exchanger
Contact us for price
Location:Guardamiglio, Italy
Description

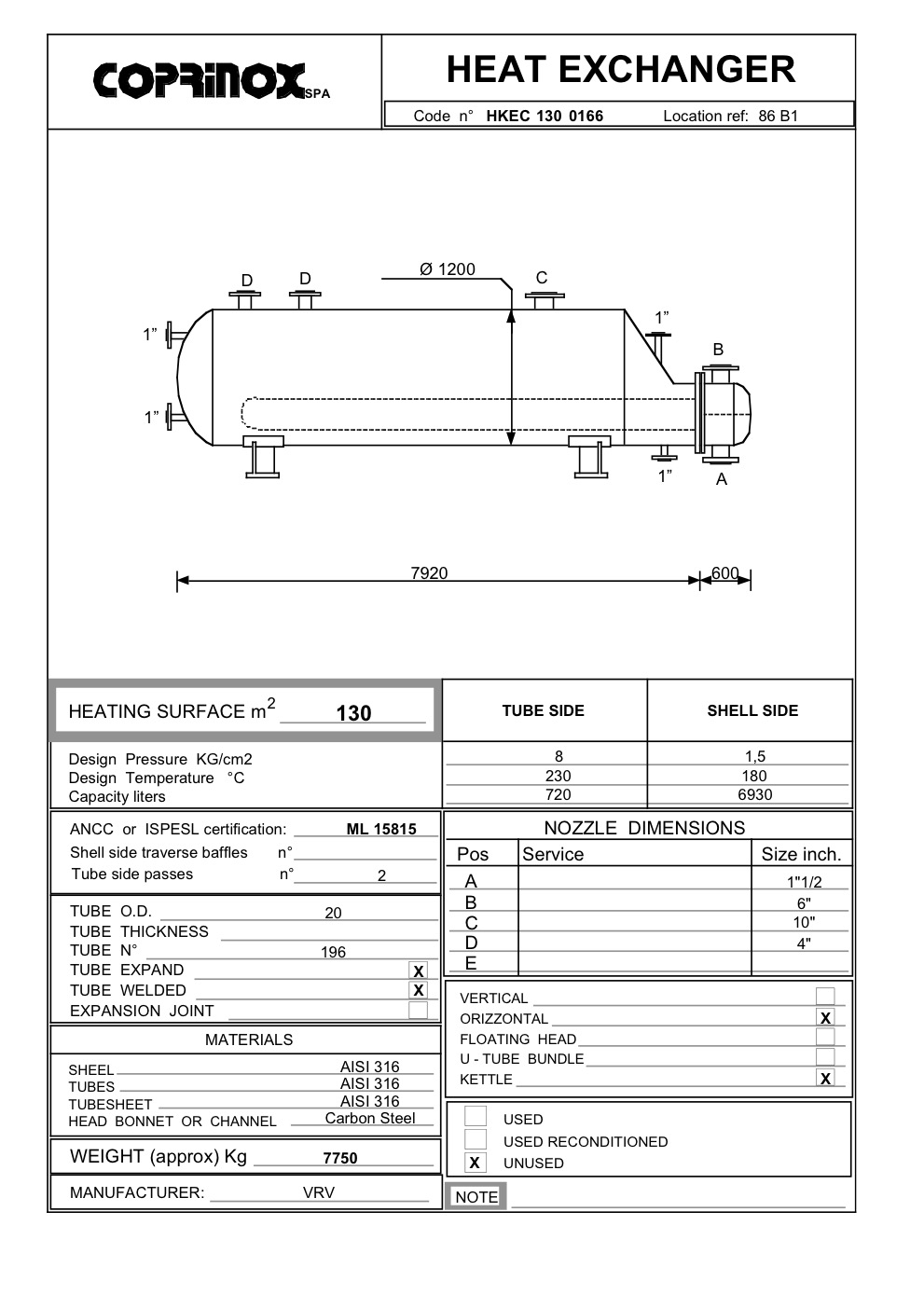

Shell and tube heat exchanger 130 square meters, casing diameter 1200 mm, pipe diameter 20 mm, manufacturer VRV, passage on the side of pipes in Carbon Steel, passage on the mantle side in AISI 316, design pressure on the tube side 8 Bar, design temperature on the side pipes 230 ° C, design pressure on the casing side 1.5 Bar, design temperature on the casing side 180 ° C, ISPESL ML 15815 testing, weight about 7750 Kg
Specifications
| Condition | Used |
| Stock Number | HKEC 130 0166 |
| Surface | 130 square meters |
| Manufacturer | VRV |
| Pressure side 1 | 8 bars |
| Side 1 temperature | 230 ° C |
| Pressure side 2 | 1.5 bar |
| Side 2 temperature | 180 ° C |
| Certification | ML 15815 |
| Material side 1 | AISI 316 |
| Material side 2 | Carbon Steel |
| Weight | 7750 Kg |
| country | Italy |
