160 square meter heat exchanger
160 square meter heat exchanger
Contact us for price
Location:Guardamiglio, Italy
Description

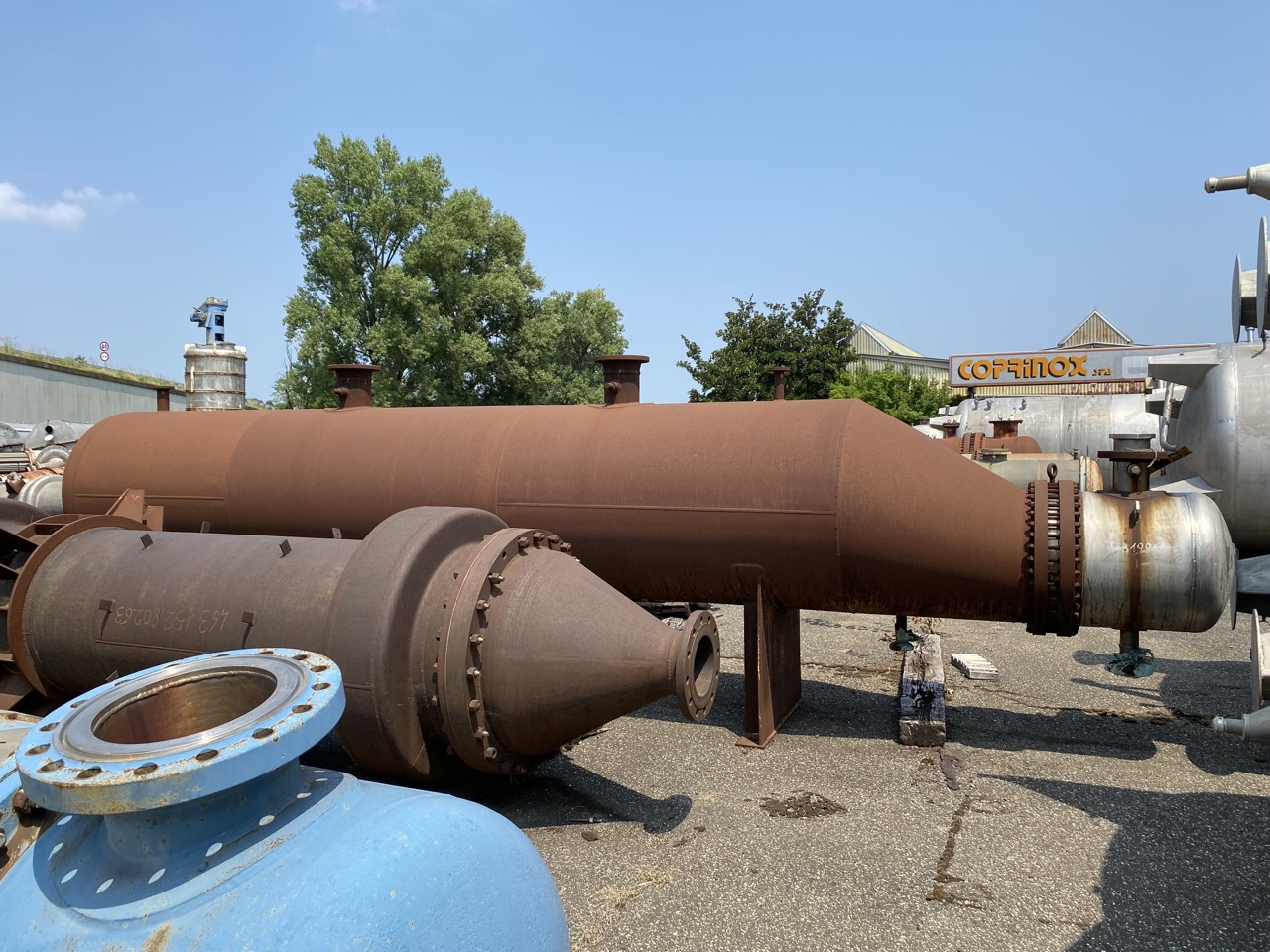

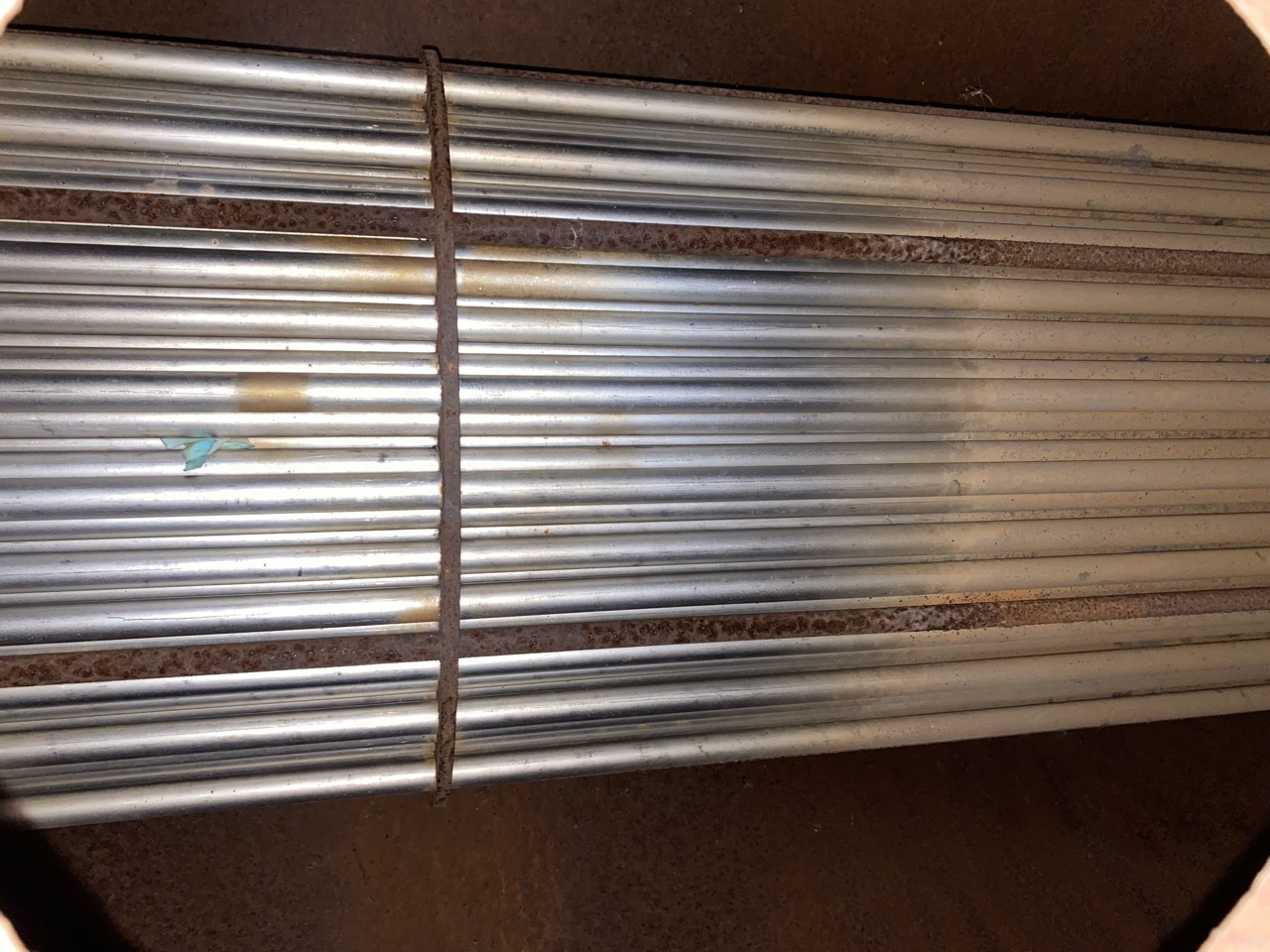

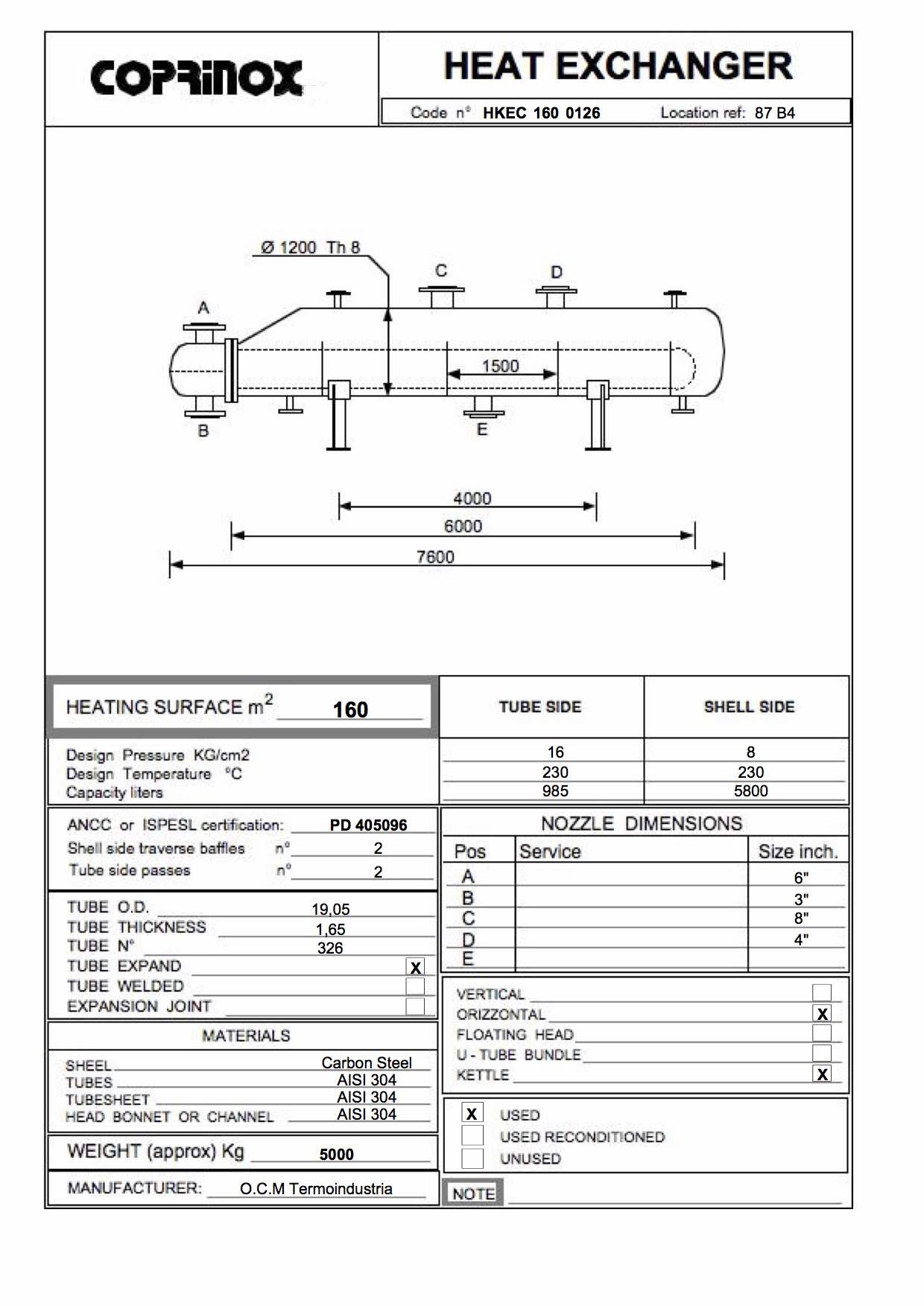

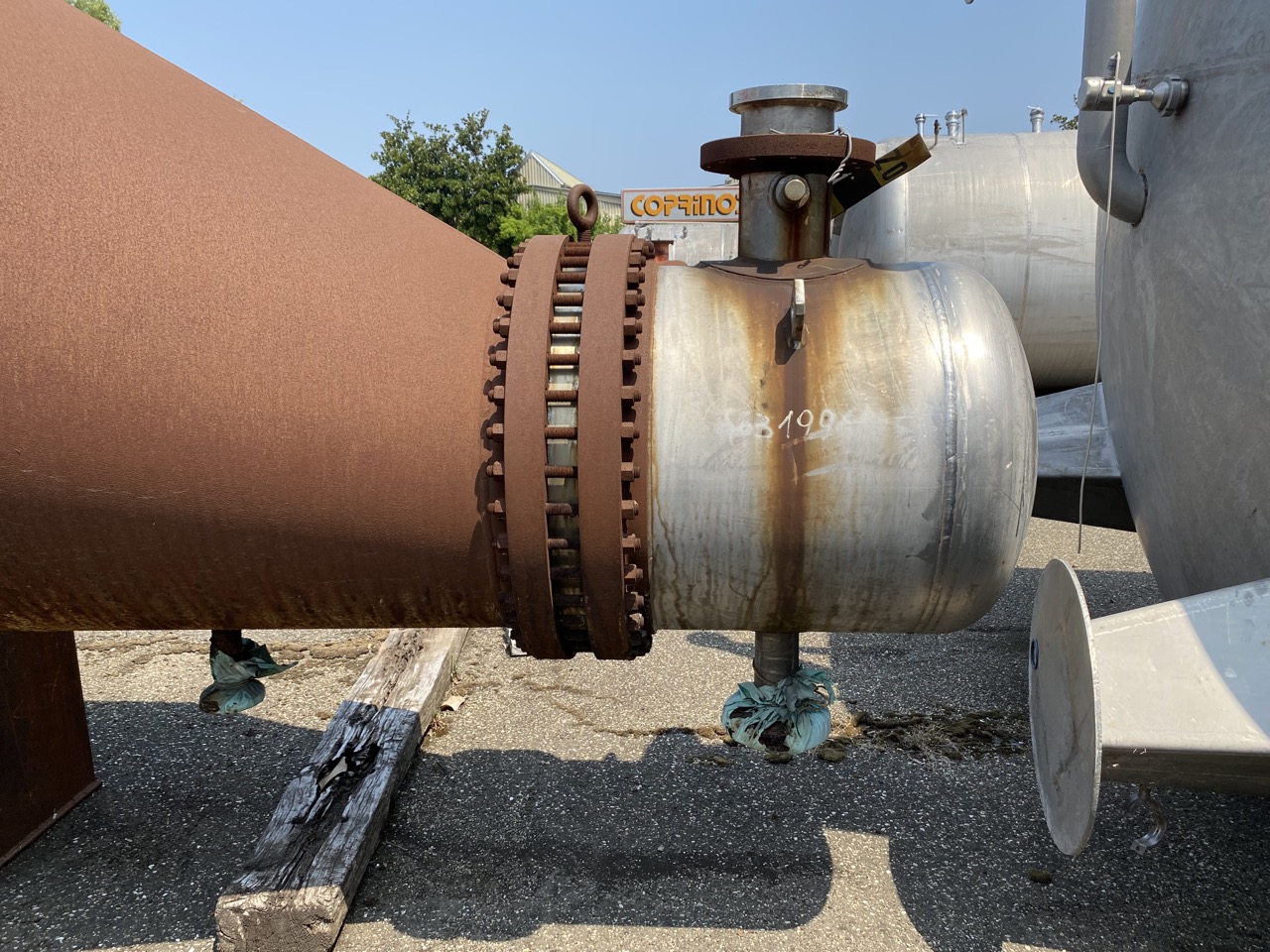

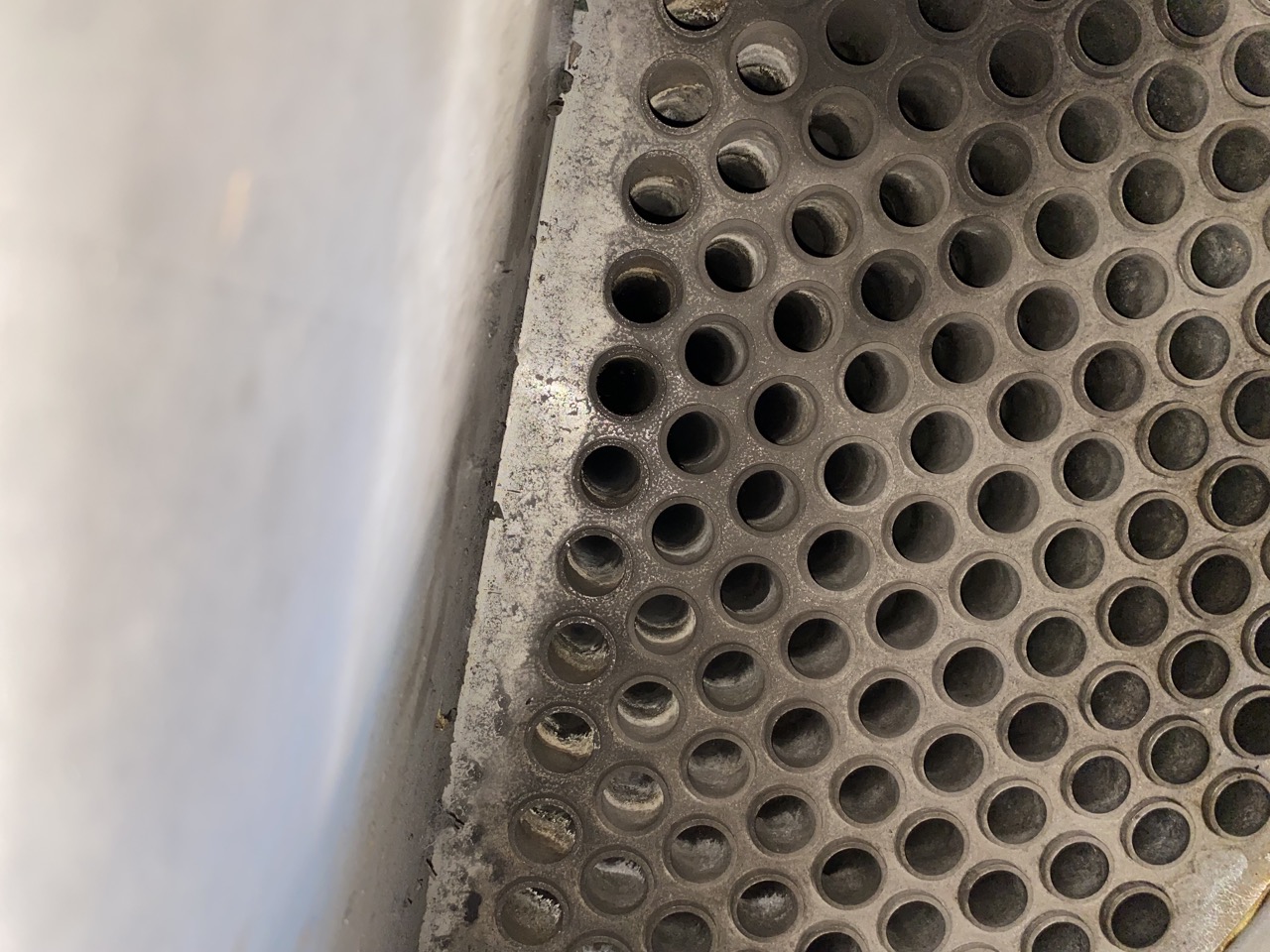

Shell and tube heat exchanger 160 square meters, 1200 mm jacket diameter, 19.05 mm tube diameter, AISI 304 tube side passage, Carbon Steel shell side passage, design pressure on the tube side 16 Bar, design temperature on the tube side 230 ° C, shell side design pressure 8 Bar, shell side design temperature 230 ° C, ISPESL test PD 405096, weight about 5000 Kg
Specifications
| Condition | Used |
| Stock Number | HKEC 160 0126 |
| Surface | 160 square meters |
| Pressure side 1 | 16 bar |
| Side 1 temperature | 230 ° C |
| Pressure side 2 | 8 bars |
| Side 2 temperature | 230 ° C |
| Certification | PD 405096 |
| Material side 1 | AISI 304 |
| Material side 2 | AISI 304 |
| Weight | 5000 Kg |
| country | Italy |
